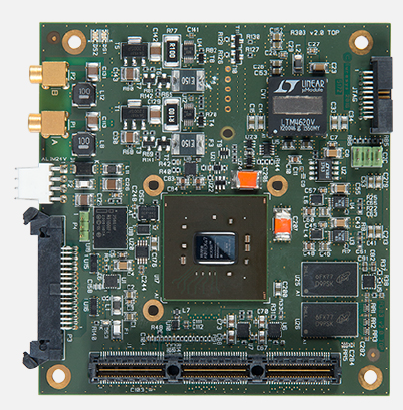

Euresys Coaxlink Duo PCIe/104
EURESYS Coaxlink Duo PCIe/104图像采集卡，适用于无人车、无人机、航拍、军工等领域
At a Glance
Ruggedized COTS board for industrial and military embedded applications
Small stackable PCIe/104 form factor
Extended temperature range: -40 to +85°C / -40 to +185°F with conduction
cooling (ambient temperature measured inside the enclosure)
Sustained shock: 20 g/11ms (all axes - half-sine and saw tooth)
Optional conformal coating
Two CoaXPress CXP-6 connections: 1,250 MB/s camera bandwidth
PCIe 2.0 (Gen 2) x4 bus: 1,700 MB/s delivery bandwidth
Feature-rich set of 10 digital I/O lines
At a Glance
Ruggedized COTS board for industrial and military embedded applications
Small stackable PCIe/104 form factor
Extended temperature range: -40 to +85°C / -40 to +185°F with conduction
cooling (ambient temperature measured inside the enclosure)
Sustained shock: 20 g/11ms (all axes - half-sine and saw tooth)
Optional conformal coating
Two CoaXPress CXP-6 connections: 1,250 MB/s camera bandwidth
PCIe 2.0 (Gen 2) x4 bus: 1,700 MB/s delivery bandwidth
Feature-rich set of 10 digital I/O lines
