滨松 H8480 H8953 H8481系列

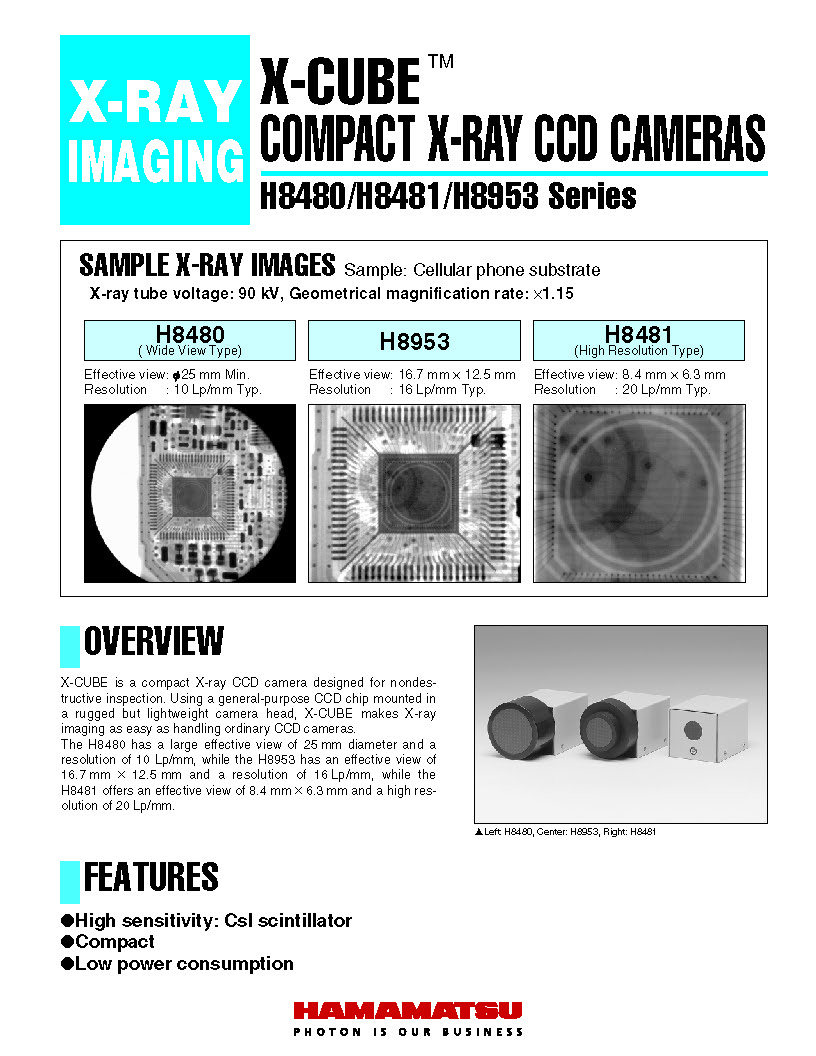

X-CUBE is a compact X-ray CCD camera designed for nondes-tructive inspection. Using a general-purpose CCD chip mounted in a rugged but lightweight camera head, X-CUBE makes X-ray imaging as easy as handling ordinary CCD cameras.
The H8480 has a large effective view of 25 mm diameter and a resolution of 10 Lp/mm, while the H8953 has an effective view of 16.7 mm × 12.5 mm and a resolution of 16 Lp/mm, while the H8481 offers an effective view of 8.4 mm × 6.3 mm and a high res-olution of 20 Lp/mm.
